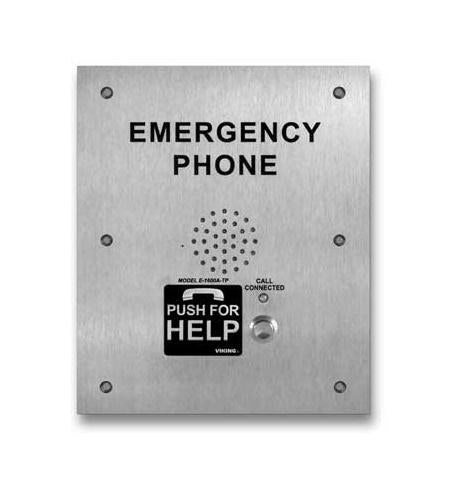

ADA Compliant Emergency Elevator Phone

- Elevators
- Parking ramps/lots
- Pools
- Automated Tellers (ATM)
- Area of refuge locations
- Lobbies
- Entryways
- Roadside emergency stations
- Stadiums
- Convention centers
- Campus Security Sites
- Entryways
- Stairwells in Public Buildings
- Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, see DOD# 859
- Meets ADA requirements for Emergency Phones:
- Can automatically light the *Call Connected* LED for the hearing impaired
- Transmits a unique location I.D. code or voice announcement
- Grade 2 Braille label for the visually impaired
- Non-volatile digital voice announcer with 16 seconds of voice memory
- Provides contact or switched 12V DC for controlling a strobe light
- Advanced call progress detection
- Handsfree operation
- Phone line powered emergency phone (LDB-3 requires power)
- Non-volatile memory (no batteries required)
- Marine grade 316 stainless steel prevents corrosion
- Dials up to 5 emergency numbers
- Cycles through backup emergency and non-emergency numbers on busy or no-answer
- Hangs up on CPC, silence, busy signal, dial tone, time-out or touch tone command
- Programmable to auto-answer on incoming calls
- Remotely programmable
- Extended temperature range (-15?F to 130?F)
- Central Station Monitoring capability (dials 2 numbers)
- Separate central station voice speed dial number
- High visibility, vandal and weather resistant
- Phone Power: Telephone line powered (24V DC/20mA min)
- LDB-3 Control Module: 120V AC/12V DC 500mA, UL listed adapter provided
- Mounting: Flush mount to Talk-A-Phone ETP towers, wall mounts, boxes and pedestals
- Environmental: -26?C to 54?C (-15?F to 130?F) with 5% to 95% non-condensing humidity
- Material: .125* (11 gauge) brushed stainless steel
- Connections: Color-coded wires with gel-filled butt connectors
UPC: VK-E-1600A-TP-EWP
Manufacturer: Viking Electronics
PartNumber: VK-E-1600A-TP-EWP
