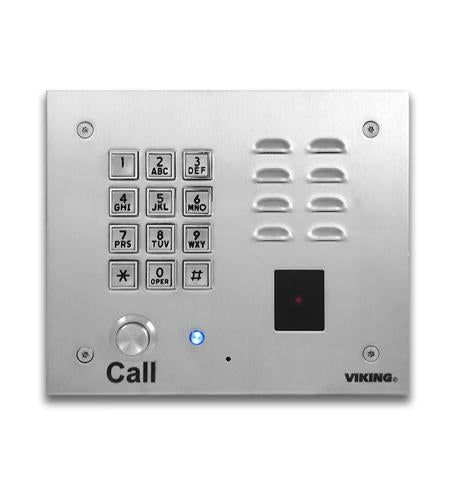

K-1770-3 with Enhanced Weather Protectio

- Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card read confirmation
- K-1770-3-EWP is designed to meet IP66 Ingress Protection Rating (see DOD# 859 for more information)
- Available in 2 standard faceplate finishes: 316 brushed stainless steel or oil rubbed bronze
- Frequency: 125KHz
- Format: 26 bit Wiegand
- Read Range: 1.25* to 2.0*
- Technologies Supported: Viking PRX-C, PRX-C-ISO, PRX-FOB and certain legacy HID? proximity protocols* (* HID and the HID logo are registered trademarks of HID Global Corporation, an ASSA ABLOY company. All other trademarks are the property of their respective owners.)
- Transducer: Beeps during card read
- LED: Red, turns off during card read
- Humidity: Up to 100% (fully potted EWP)
- Operating Temperature: -34? C to 65? C (-30? F to 150? F)
- Blue *in use* LED
- Telephone line powered
- Volume adjustments for microphone and speaker
- Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
- Selectable auto-answer feature for monitoring
- Selectable push button disconnect
- Zinc plated steel rough-in box with (2) 3/4* conduit knockouts
- Optional VE-6x7 Surface Mount Box available
- Selectable VOX switching speed
UPC: VK-K-1770-3-EWP
Manufacturer: Viking Electronics
PartNumber: VK-K-1770-3-EWP
