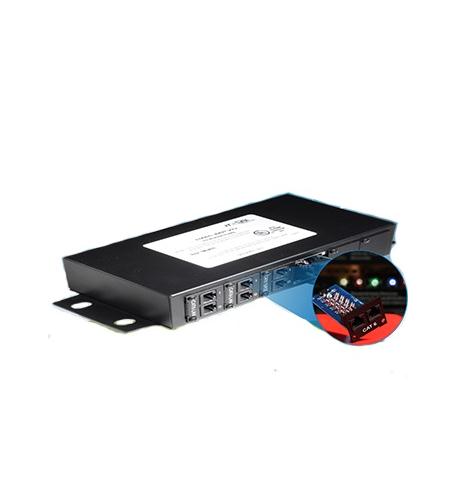

MODULAR SURGE PROTECTOR

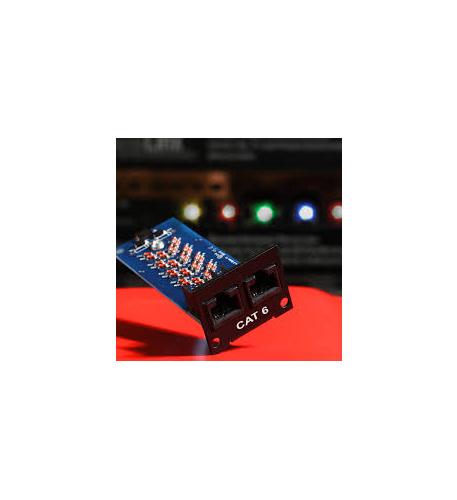

- Solid State Category 6 Wall Mount Protection Module
- Applications: LAN
- RJ45 In/Out
- Agency Approval: UL 497 and 497B
- Grounding Requirements: Field-installed solid copper wire (6AWG for Primary, 14AWG for Isolated Loop)
- Recommended Grounding Impedance: <0.5 Ohm
- Signal Perfect Circuitry
- Performance Rating: Cat6
- Clamping Level: 16V
- Response Time: 1-5 Nanoseconds
- Capacitance: <20pF
- Wires Protected: 8-wires, 4 pairs per port
UPC: ITW-RM12-CAT6-LAN
Manufacturer: ITW Linx
PartNumber: ITW-RM12-CAT6-LAN
