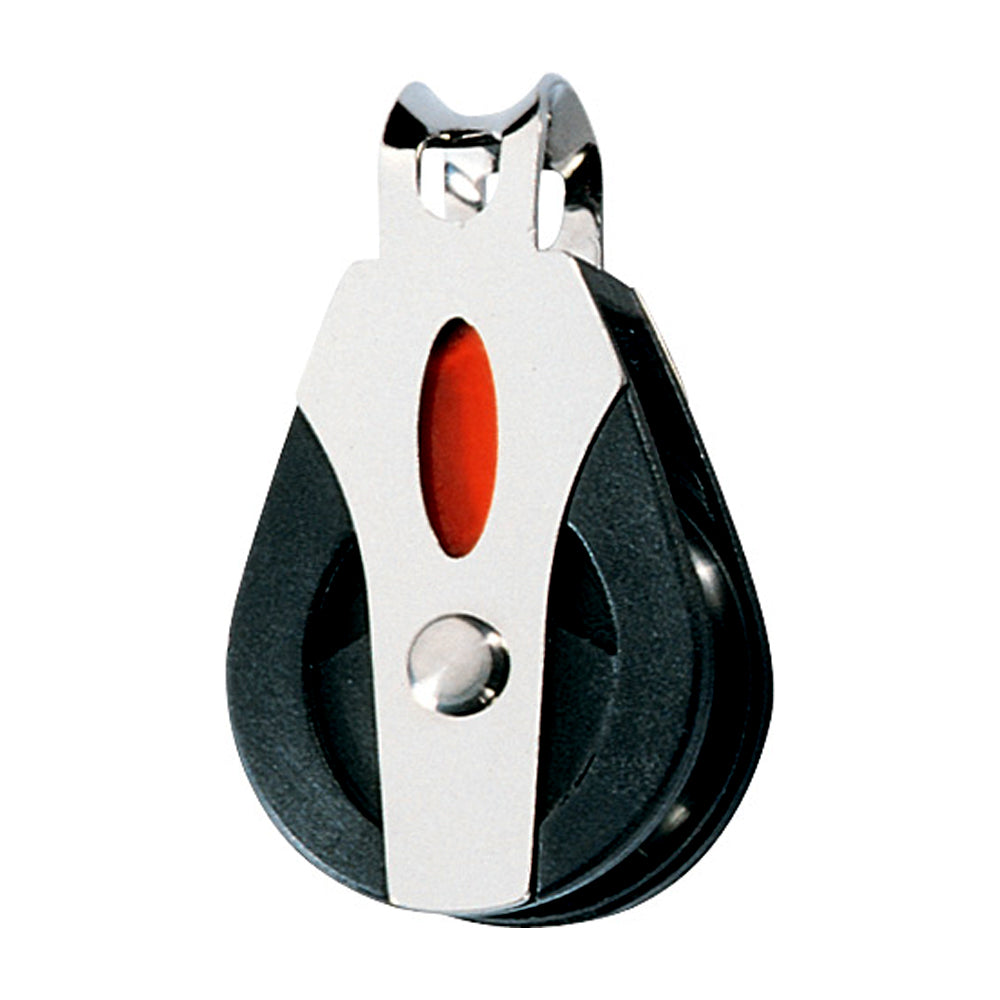

Ronstan Series 30 Ball Bearing Block - Single - Loop Top [RF30101]

Series 30 Ball Bearing Block - Single - Loop Top

Features:

• Low friction 2-stage ball bearing system provides consistent performance over the full working load range

• High static and dynamic load capacity

• Light weight

• Versatile head fittings

• Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction

• Can be fitted with a shackle in either of two planes to allow correct alignment of the block

Applications:

• Primary lead blocks on dinghies and catamarans

• Control lines on larger yachts

Materials:

• U.V. stabilized Acetal sheaves

• Acetal ball bearings

• Impact modified, fiber reinforced and U.V. stabilized Nylon cheeks

• Grade 316 stainless steel load straps and head fittings

Specifications:
Sheave Ø: 30mm(1-3/16")
Max. Rope Ø: 8mm(5/16")
M.W.L.: 300kg(660lbs)
B. L.: 750kg(1,650lbs)
Weight: 28g(1.0oz)
